Chains

A) Roller Transmission Chain

These Chains Cover Fractional To 2000 HP Applications And Can Be Run Smoother Even Up to A Speed Of 1000 Rpm.These Are Available As Per BSS,ASA Standard In Simple, Duplex, Triplex And Multi Strand. Available Ex-STOCK In Pitches Of 3/16” To 3” In Both Carbon Steel & Stainless Steel.

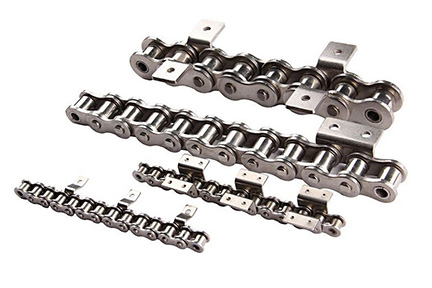

B) Attachment Chain

Smooth and stable flow of materials depends on the performance of conveyor chains. These are available from 1.5” pitch to 24” pitches having breaking load up to 100 tonnes in Carbon Steel,Stainless Steel, Zinc Plated, Nylon Rollers etc.



C) Conveyor Chain

Smooth and stable flow of materials depends on the performance of conveyor chains. These are available from 1.5” pitch to 24” pitches having breaking load up to 100 tonnes in Carbon Steel,Stainless Steel, Zinc Plated, Nylon Rollers etc.




i) Hollow bearing chain

This enables attachments to be fixed to outer links by bolting through the hollow bearing pins.




ii) Solid Bearing Pin Chain

This chain, while having same gearing dimensions as the hollow bearing pin chains, has a higher breaking load rating and any attachments can be fixed




D) Bucket Elevator Chains

These chains are designed to withstand severe shock loads and are available for Centrifugal Discharge Bucket Elevators and positive Discharge Bucket Elevators. For greater tensile and fatigue strength plus wear resistance special Bucket Elevator Chains are available with K1, K2, G20, G4 attachments.



i) Pin Bush Type

This roller less chain keeps less contact between sprockets and bush in slow operation when transferring greater strength.



E) Bottling Chains (Flat Top Chains)

Ideal for continuous conveying such as bottling, canning of soft drinks, beer, food, drugs etc. Available for straight running and side flexing in materials like Carbon Steel, Stainless Steel and Plastics. Sizes 2” to 7 ½” width of 1 ½” & 1” pitch. Available Ex-STOCK.


F) Dairy Chains

This chain employed in 2 parallel channels. Pin edges are riveted in the counter shunks to prevent the interruption in channel and are mainly used in dairy Industry


G) P.I.V. Chains

Available as per German, English, and Czechoslovakian Standards, imported as well as indigenously made. Ring Roller Bearing P.I.V. Chains are also available.


H) Silent Chain

This is the most economical and compact drive with reduced loads resulting in long life. All sprockets and chains are as per American standard and available from 3/8 to 1" pitch and width up to 6".


I) Offset Side Bar Chains

These chains are designed to meet requirement of heavy shock load and wear resistance. They are used in the transmission of heavy plants, earth moving equipment like shovel, excavators, cranes etc. Available in various sizes from 2" pitch to 6" pitch.


J) Leaf Chains

Various sizes from 3/8" to 2" pitch as per AL, BL series are available.
